Hospitals
Home and Commercial
Restaurants
Factories, Modern Rice Mills
The unending list includes: CNC machines, engineering industries, modern textile machineries, auto looms & mills, garment industries (embroidery, knitting, compacting, dyeing, printing machineries, sewing machines, etc.,), medical equipments, hotels & restaurants, multiplexes, malls & apartments, educational institutions, lighting loads, lifts & elevators, air conditioning equipments, factories, modern rice mills, hospitals, IT companies & BPO’s, gymnasiums, photocopying centres (Xerox centres), DTP centres, Corporate buildings & offices, retail showrooms, boutiques, restaurants, theatre projectors, etc.,
Our Servo stabilizers can be classified into Air Cooled Stabilizers and Oil Cooled Stabilizers. While an air cooled stabilizer is generally used for areas with power capacities less than 45 KVA, oil cooled stabilizer can be used for applications where more than 45 KVA power is used. In industries where dust and flammable particles like cotton dust, foundry dust, etc., are very high, oil cooled stabilizers should be used even for lower capacities to prevent fire accidents and to attain trouble free performance.
Single phase air cooled stabilizers are available in different capacities as 1, 2, 3 4, 5, 7.5, 10, 15, 20 and 25 KVA’s.
Voltage range/working range for Single phase air cooled stabilizers given below:
| Input Range | Output Range |
|---|---|
| 170 to 270 V | 230 ± 1% V |
| 90 to 270 V | 230 ± 1% V |
| 170 to 270 V | 230 ± 1% V |
| 90 to 270 V | 230 ± 1% V |
3-phase air cooled stabilizers are available in the following KVA capacities: 3, 6, 9, 12, 15, 22.5, 25, 30, 40, 45, 50, 60, 75, 100, 125 and 150. Voltage range/working range for 3-phase air cooled stabilizers given below:
| Input Range | Output Range |
|---|---|
| 360 to 460 V | 400 ± 1% V |
| 340 to 465V | 400 ± 1% V |
| 295 to 465 V | 400 ± 1% V |
| 240 to 465 V | 400 ± 1% V |
| 155 to 465 V | 400 ± 1% V |
| 295 to 520 V | 400 ± 1% V |
In special cases, we can also custom-build stabilizers as per your site requirement.
Oil cooled stabilizers are again available in single phase and three phase models.
Single phase oil cooled stabilizers are available in different capacities as 1, 2, 3 4, 5, 7.5, 10, 15, 20, 25 KVA’s.
Voltage range/working range for Single phase oil cooled stabilizers given below:
| Input Range | Output Range |
|---|---|
| 170 to 270 V | 230 ± 1% V |
| 140 to 270 V | 230 ± 1% V |
| 90 to 270 V | 230 ± 1% V |
| 170 to 300 V | 230 ± 1% V |
Oil cooled stabilizers are again available in single phase and three phase models.
Single phase oil cooled stabilizers are available in different capacities as 1, 2, 3 4, 5, 7.5, 10, 15, 20, 25 KVA’s.
Voltage range/working range for Single phase oil cooled stabilizers given below:
| Input Range | Output Range |
|---|---|
| 360 to 460 V | 400 ± 1% V |
| 295 to 465 V | 400 ± 1% V |
| 240 to 465 V | 400 ± 1% V |
| 155 to 465 V | 400 ± 1% V |
| 295 to 520 V < | 400 ± 1% V |
In special cases, we can also custom-build stabilizers as per your site requirement.
We provide a wide range of Single Phase Voltage Stabilizers to our clients across the nation and we also offer 3ph, air cooled stabilizer, automatic stabilizers. Oil cooled stabilizer etc, fabricated by our team of technocrats, our range of stabilizers is appreciated for features like higher efficiency and are long lasting in nature.
1 KVA to 25 KVA
| Parameter | Single Phase |
| Capacity | 1 KVA to 25 KVA |
| Operating Frequency | 47 - 53Hz> |
| Input Voltage Range | Range I :200 - 270V |
| Range II :170 - 270V | |
| Range III :140 - 270V | |
| Output Voltage | 230 V + 1% (Adjustable) |
| Output Volts Regulation< | 1.00% |
| Type of Cooling | Natural Air Cooled |
| Working Temprature | 0 to 50° C |
| Insulation | Class “B” |
| Output Wave Form | True Reproduction of Input |
| Wave Form Distortion | Nil |
| Efficiency | 98% at Nominal Load |
| Correction Rate | 15/20/35 V per second |
| Relative Humidity | 60.00% |
| Effect of Load Power Factor | Nil |
| Environment | Indoor Only |

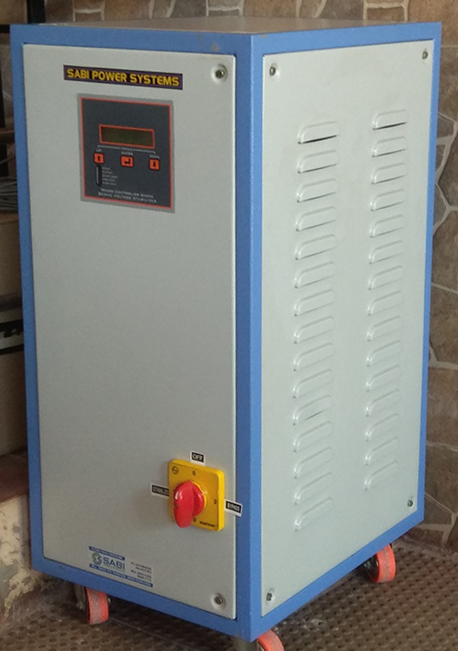

3 KVA to 150 KVA
We offer precision-engineered range of Three Phase Air Cooled Voltage Stabilizers that comes with air-cooled technology. These help to give accurate and steady corrections of voltage supply for better functioning. Our range is well designed comprising of auto reset system and single phasing prevention. These air-cooled stabilizers are widely reckoned for features like:
| Parameter | Three Phase |
| Capacity | 3 KVA to 150 KVA |
| Operating Frequency | 47 - 53Hz |
| Input Voltage Range | Range I :340 - 465V |
| Range II :295 - 465V | |
| Range III :240 -465V | |
| Output Voltage | 400 V 1% (Adjustable) |
| Output Volts Regulation | 1% |
| Type of Cooling | Air Cooled |
| Working Temperature | 0 to 50° C |
| Insulation | Class “B” |
| Output Wave | Form True Reproduction of Input |
| Wave Form Distortion | Nil |
| Efficiency | 98% at Nominal Load |
| Correction Rate | 25/35/60 V per second |
| Relative Humidity | 60% |
| Effect of Load Power Factor | Nil |
| Environment | Indoor & out door |

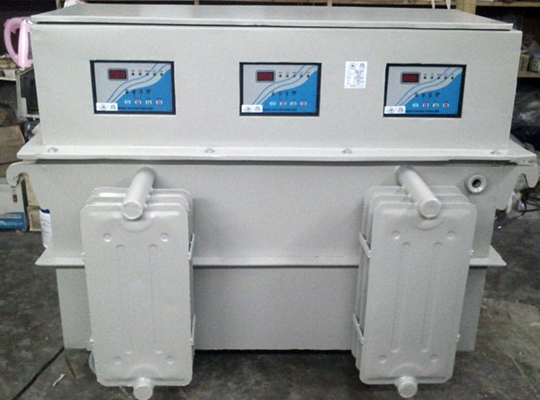

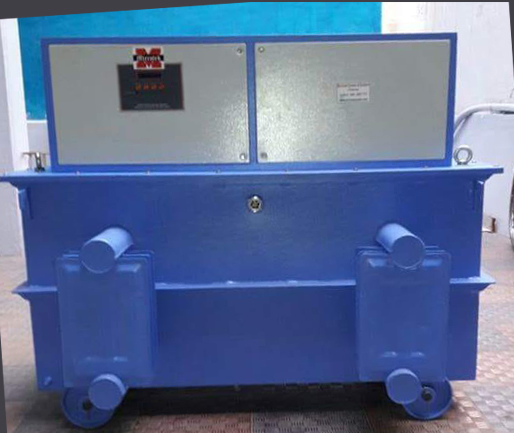

We are of the leading manufacturers and supplier of oil cooled voltage stabilizers (micro processor based) that helps in preventing data loss caused by outrages & brown outs. This comes with computer grade line conditioning with isolation technique and the output is fully isolated by double conversion & isolation transformer. Moreover, we also offer our oil cooled servo stabilizers with remote monitoring & control through SNPB and Internet. We are a leading manufacturer and supplier of Servo Stabilizers from Coimbatore, Karnataka,Andra pradesh ,kerala and South India
3 KVA to 1000 KVA
| Parameter | Three Phase |
| Capacity | 3 KVA to 1000 KVA |
| Operating Frequency | 47 - 53Hz |
| Input Voltage Range | Range I :340 - 465V |
| Range II :295 - 465V | |
| Range III :240 -465V | |
| Output Voltage | 400 V 1% (Adjustable) |
| Output Volts Regulation | 1% |
| Type of Cooling | Oil Cooled |
| Working Temperature | 0 to 50° C |
| Insulation | Class “B” |
| Output Wave | Form True Reproduction of Input |
| Wave Form Distortion | Nil |
| Efficiency | 98% at Nominal Load |
| Correction Rate | 25/35/60 V per second |
| Relative Humidity | 60% |
| Effect of Load Power Factor | Nil |
| Environment | Indoor &out door |
